swingarm removal

well i was 90% sure there wasnt a write up on swingarm removal since i couldnt find it back when i took my first one off but of coarse i was wrong. but since i took so much time taking pics and uploading them im making a writeup anyways. tripages writeups great, i just have a few more pics incase someone is still unsure. so ill keep things fairly brief. i have no fairings on my bike, or exhaust or rearsets and the rear tire, chain, sprockets already been removed. so to tackle the swing arm. first off that i do a little different instead of the jack under the oil pan is i have 2 wratchet straps hooked around my raftors and hooked in the exhaust mount holes on the sub frame.

first thing i unbolted was the upper shock mount. i used a 17 mm socket.

next remove the bottom bolt on the dog bone closest to the back.

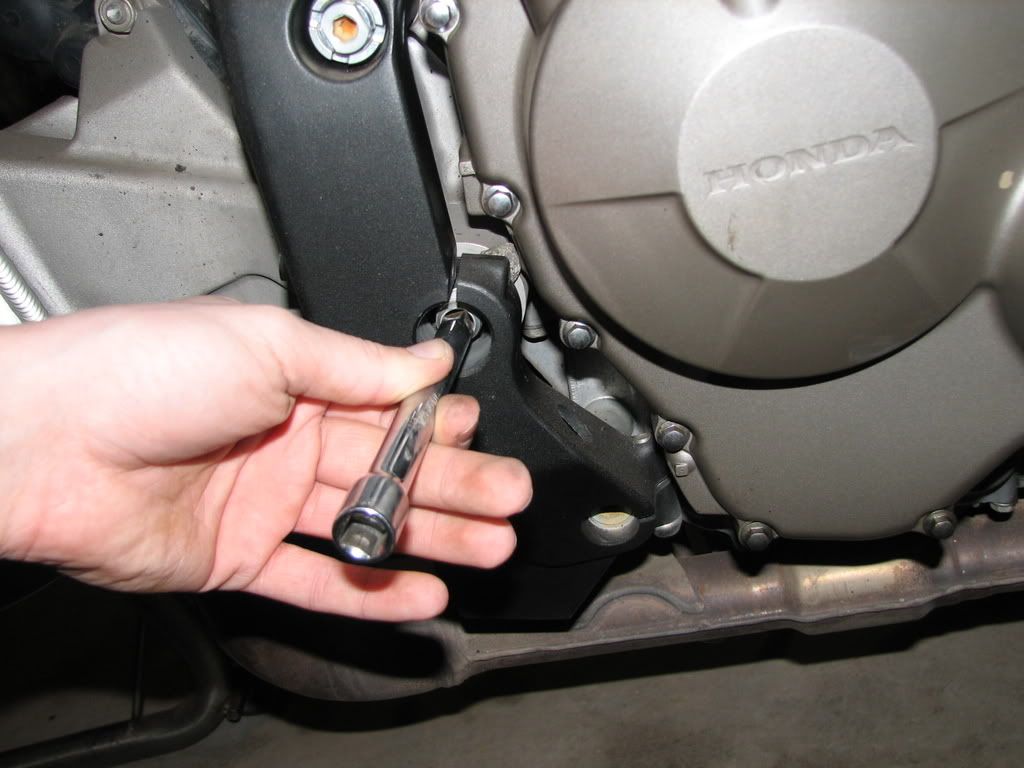

next i removed the pinch bolts on the left and right sides.


heres a cheap way to remove your axel bolt if you dont have the right tools which i hear alot of in threads. i got a bolt that fits in the axel hole then i welded a few nuts on the other end of the bolt. then you can put on a wratchet and remove it. its not pretty but works like a charm. remove it from the brake side of the bike


norm nason is offline
Sponsored Links
Advertisement

post #2 of 42 (permalink) Old 03-10-2008, 04:12 AM Thread Starter
Pocketbike Racer

norm nason's Avatar

Join Date: Aug 2007
Posts: 371
Thanks: 0
Thanked 1 Time in 1 Post
Feedback Score: 1 reviews
next tap through the axel bolt with an extension or something like it.

now the swingarm should pull out off the bike with ease.


now the bike can sway back and forth since its hanging so i just put a straight bar through where i took the axel bolt off and put a jack stand on both sides. i still have 95% of the weight hanging. more or less just to keep it sturdy

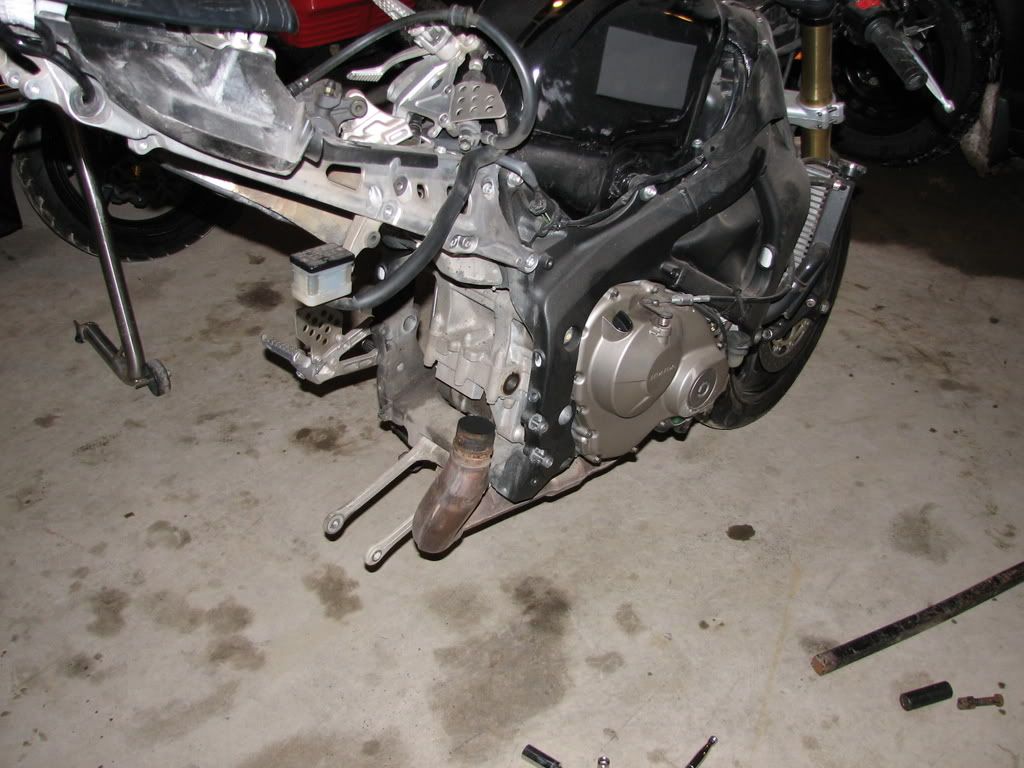

heres what your left with. i already previously cut my chain so its the only dif between mine and yours.

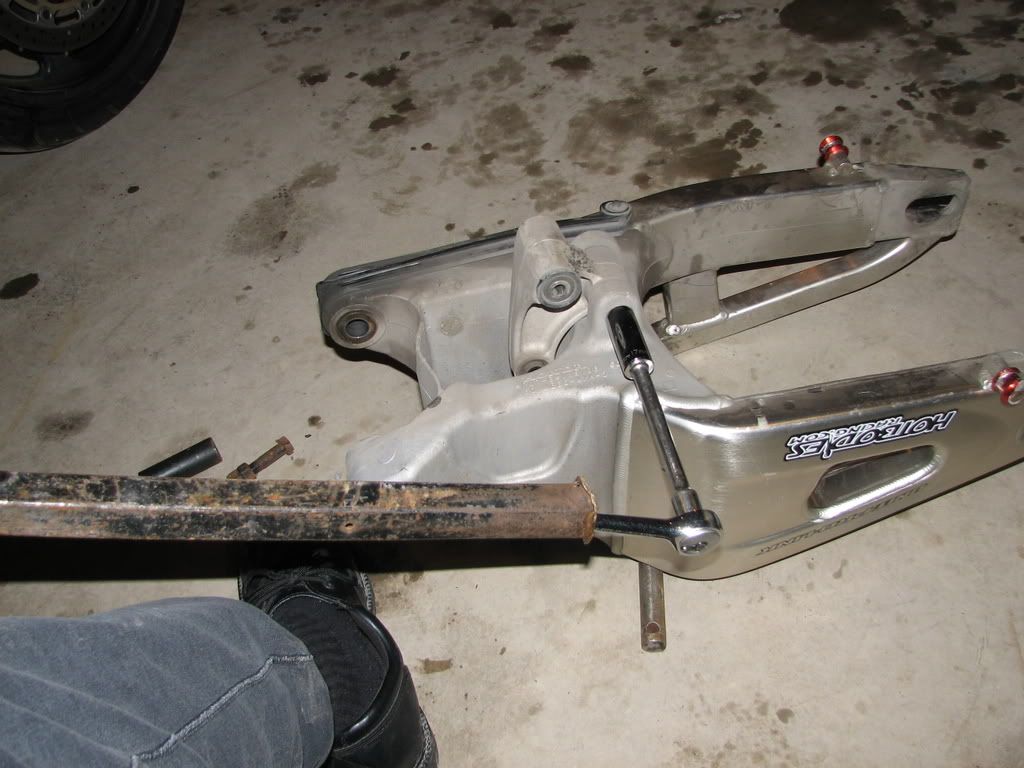

next i removed the dog bone. it was the tightest for me so i needed some leverage.

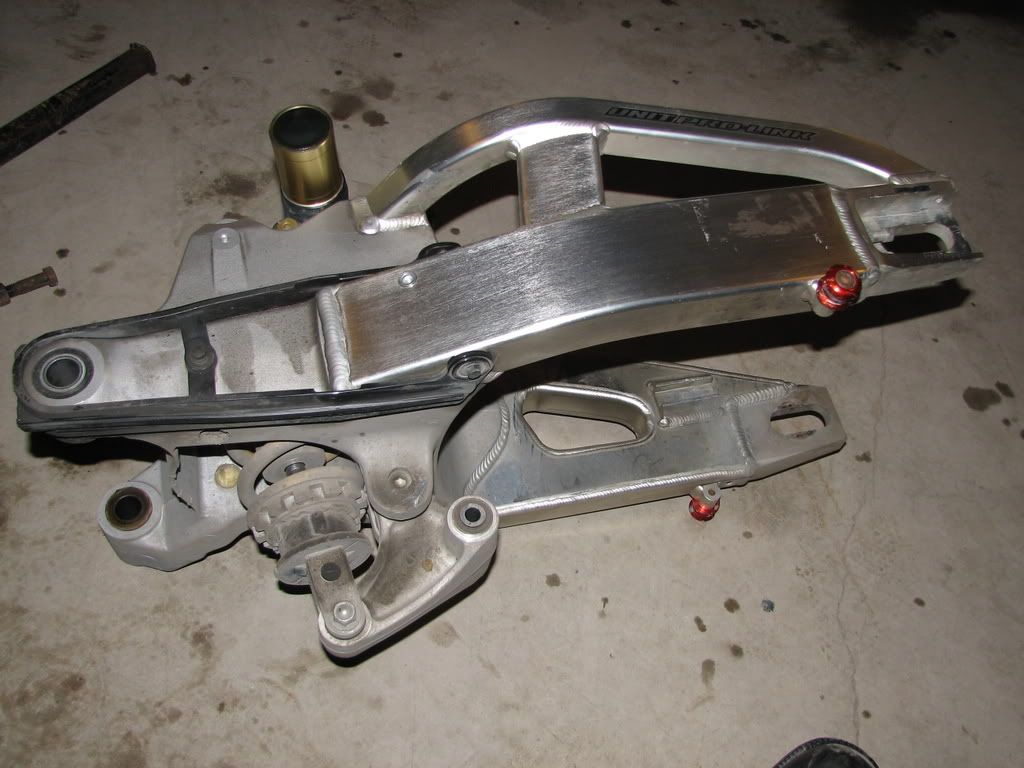

once you unbolt the lower shock bolt pull the shock up through the swingarm and remove the dog bone and the chain guide and the 2 chain adjusters and the stand spools and it should be bare.

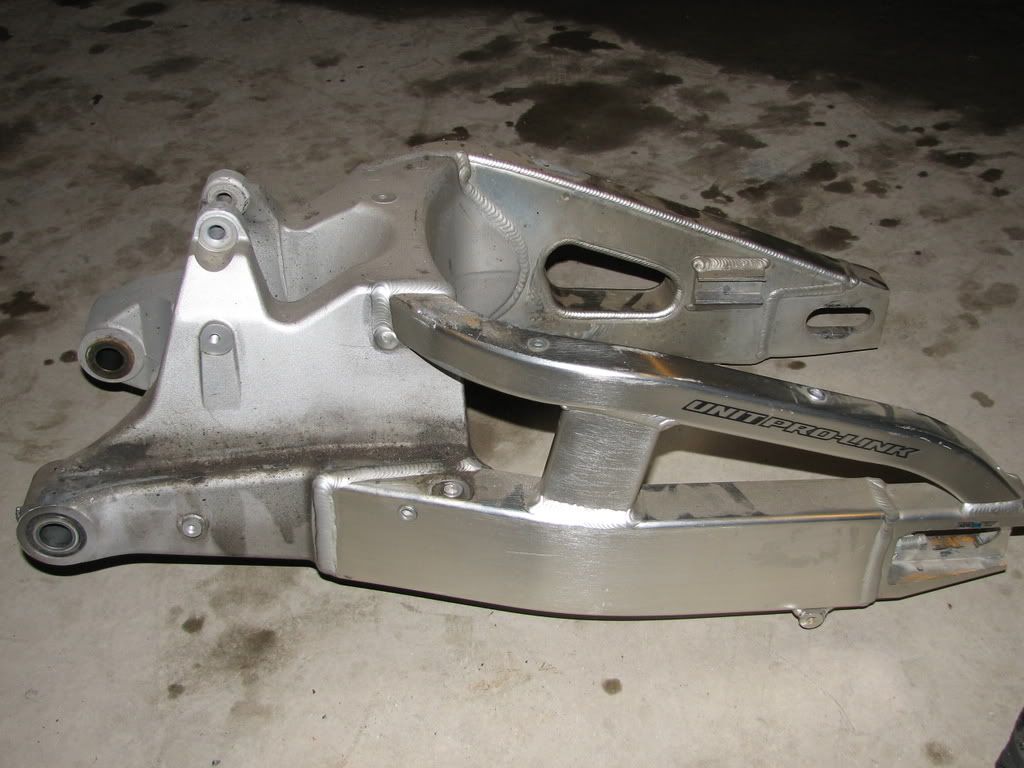

i run my last swingarm through with the bearings and they looked and felt fine but they should be cleaned since the swingarm is sandblasted.

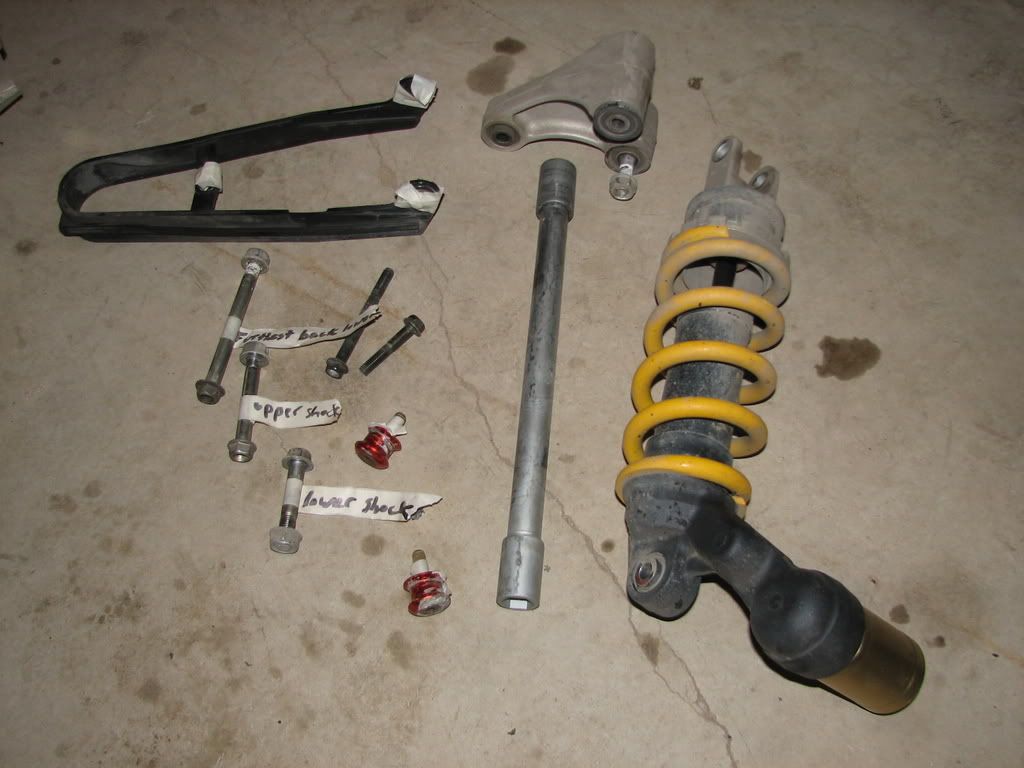

heres the removed parts. i tape and label all my parts so im not stuck looking sine it might be a while before reinstallation.

cheers. hope this made things clear. any questions let me know. theres lots of different ways to do it but this went very well for me and only took about a half hour taking pics and all.
norm nason is offline
The Following User Says Thank You to norm nason For This Useful Post:
orange06RR (06-21-2011)
post #3 of 42 (permalink) Old 10-20-2008, 06:10 PM
Training Wheel Hero

Mastype's Avatar

Join Date: Dec 2007
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
Wow thanks man... this really help..
Mastype is offline
post #4 of 42 (permalink) Old 10-25-2008, 06:31 PM
Knee Dragger

Join Date: May 2008
Location: Reynoldsburg, OH
Posts: 101
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
So where can I find something for a newb?? :) Something from the beginning, with everything still installed. I can take the fairings off, but other then that, I'm lost. Never adjusted a chain, let alone removed it or the rear tire.
justin0469 is offline
post #5 of 42 (permalink) Old 10-25-2008, 06:48 PM
Knee Dragger

Join Date: May 2008
Location: Reynoldsburg, OH
Posts: 101
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
What is the bolt that your made a special tool for? It's not an axle bolt, because, that's not your axle. What is the real tool called? I don't know how to weld but I need to get something to work.
justin0469 is offline
post #6 of 42 (permalink) Old 11-07-2008, 12:42 AM
Training Wheel Hero

Join Date: Nov 2006
Posts: 39
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 1 reviews
will be doing this this winter cant wait thanks for the pics
Solid is offline
post #7 of 42 (permalink) Old 11-10-2008, 05:34 PM
Moto GP Racer

dreamzboy's Avatar

Join Date: Aug 2007
Posts: 3,088
Thanks: 31
Thanked 116 Times in 70 Posts
Feedback Score: 4 reviews
Nice breaker bar. Very helpful. Thanks for uploading and writing it anyway, it's more clearer and thorough now.
dreamzboy is offline
post #8 of 42 (permalink) Old 01-03-2009, 11:07 PM
Training Wheel Hero

Join Date: Dec 2008
Posts: 49
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
beautiful post!
DocSean is offline
post #9 of 42 (permalink) Old 01-03-2009, 11:09 PM
World Superbike Racer

bwolfe84's Avatar

Join Date: Jul 2007
Location: 619/760/559
Posts: 2,412
Thanks: 15
Thanked 16 Times in 14 Posts
Feedback Score: 5 reviews
looks good. I am def going to do this while on deployment...

thanks

Honda 600RR RED (Julia)
"Ambition is just a poor excuse for people to not have enough sense to be lazy..."
bwolfe84 is offline
post #10 of 42 (permalink) Old 01-21-2009, 11:49 PM
Knee Dragger

Join Date: Jul 2008
Posts: 106
Thanks: 0
Thanked 1 Time in 1 Post
Feedback Score: 0 reviews
very nice thanks for the pics! very helpful~
TumbleKing is offline
post #11 of 42 (permalink) Old 01-21-2009, 11:59 PM
AMA Supersport Racer

ChaosRider's Avatar

Join Date: Jul 2008
Location: Des Moines, Ia
Posts: 599
Thanks: 0
Thanked 1 Time in 1 Post
Feedback Score: 1 reviews
Good write up man, only advice i have is to break loose all the bolts in the linkage first
while the swingarm is still on the bike. Easier to get good leverage. Also, if you're going to leave the bearings in get some washers and bolts to cap them off. That way you
don't get any sand in the bearings at all. I would trash any bearing that got that fine
shiz in it, just not worth snapping your swingarm off. New bearings and dust seals cost
only 70 bucks at the dealer.

03' 600RR Movistar, Full Yosh RS5, Rumble Concepts,
LED Flushies, CA Integrated Taillight, Custom FE, Rumble
Concepts Flasher Relay, Stompgrips, Pazzo Shorties, DDM HID's,
520 Conv. w/ Driven sprox -1+2, Speedohealer, SS Goodridge
front lines, Woodcraft frame sliders, R&G forksliders, BMC
Street, Puig Double Bubble, HID cutoff switch in toolbox,
Custom tag bracket, Lots of black Powdercoat, CRF450R
rear master mod

Link to my build thread - http://www.600rr.net/vb/showthread.php?t=124433
ChaosRider is offline
post #12 of 42 (permalink) Old 02-03-2009, 12:25 PM
Training Wheel Hero

Join Date: Dec 2008
Posts: 49
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
welded a few nuts on the other end of the bolt. then you can put on a wratchet and remove it. its not pretty but works like a charm. remove it from the brake side of the bike


Can anyone tell me what size allen head I would need for this, its bigger then a 10 or 12 isn't it?
DocSean is offline
post #13 of 42 (permalink) Old 02-03-2009, 12:30 PM
Training Wheel Hero

Join Date: Dec 2008
Posts: 49
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
Quote:
Originally Posted by DocSean View Post
welded a few nuts on the other end of the bolt. then you can put on a wratchet and remove it. its not pretty but works like a charm. remove it from the brake side of the bike

Can anyone tell me what size allen head I would need for this, its bigger then a 10 or 12 isn't it? And it's called a "swingarm pivot nut"
DocSean is offline
post #14 of 42 (permalink) Old 02-15-2009, 10:51 PM
Pocketbike Racer

fwb600rr's Avatar

Join Date: Jun 2006
Location: MD
Posts: 394
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 11 reviews
Quote:
Originally Posted by DocSean View Post
Can anyone tell me what size allen head I would need for this, its bigger then a 10 or 12 isn't it? And it's called a "swingarm pivot nut"
Tried this and I'm thinking that the bolt was overheated as it snaped in half pretty easy. I have up to a 10 mm hex allen and its much bigger so I started seaching and found this set.


http://www.zdmak.com/wbstore/main.as...CTMP=1&LowCt=0

Will let you know when it comes in to want one worked. I'm guessing 17mm.
fwb600rr is offline
post #15 of 42 (permalink) Old 03-22-2009, 03:21 PM
Knee Dragger

Tribal06RR's Avatar

Join Date: Oct 2008
Posts: 123
Thanks: 1
Thanked 0 Times in 0 Posts
Feedback Score: 1 reviews
great write up nice man
Tribal06RR is offline
post #16 of 42 (permalink) Old 09-07-2009, 05:56 PM
Training Wheel Hero

Travis.'s Avatar

Join Date: Nov 2008
Location: San Ramon, NorCal
Posts: 61
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
So what size is the swing arm pivot nut, is it 17mm allen head?
Travis. is offline
post #17 of 42 (permalink) Old 09-14-2009, 08:03 PM Thread Starter
Pocketbike Racer

norm nason's Avatar

Join Date: Aug 2007
Posts: 371
Thanks: 0
Thanked 1 Time in 1 Post
Feedback Score: 1 reviews
not sure the size but it shouldnt be that difficult. just go out and buy a few bolts til you get it right and put 2 nuts on it and twist it off. shouldnt be difficult
norm nason is offline
post #18 of 42 (permalink) Old 12-10-2009, 11:30 AM
btr
AMA Supersport Racer

btr's Avatar

Join Date: Oct 2009
Location: Lynn, MA
Posts: 644
Thanks: 1
Thanked 2 Times in 2 Posts
Feedback Score: 2 reviews
wow nice write up. i will use this.

i thought i needed something called a castle socket for this swingarm removal but if I dont then you just saved me about 45$
btr is offline
post #19 of 42 (permalink) Old 12-23-2009, 02:58 PM
Knee Dragger

VTSteve's Avatar

Join Date: Dec 2009
Posts: 207
Images: 7
Thanks: 0
Thanked 3 Times in 3 Posts
Feedback Score: 0 reviews
Quote:
So what size is the swing arm pivot nut, is it 17mm allen head?
Just wanted to confirm, I verified it is a 17mm.
VTSteve is offline
post #20 of 42 (permalink) Old 12-26-2009, 12:18 AM
AMA Supersport Racer

Join Date: Oct 2008
Location: windsor, Ontario
Posts: 589
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 2 reviews
nice thread man, i've been thinking about powdercoating my swingarm black but wasnt sure about the fine details involved
scorpion2420 is offline
post #21 of 42 (permalink) Old 12-27-2009, 11:51 AM
AMA Supersport Racer

Chip O's Avatar

Join Date: Feb 2008
Location: Tampa, Florida, USA
Posts: 811
Thanks: 0
Thanked 1 Time in 1 Post
Feedback Score: 2 reviews
good write up! Love the wratchet straps!

Chip O is offline
post #22 of 42 (permalink) Old 12-27-2009, 12:14 PM
AMA Supersport Racer

Join Date: Oct 2008
Location: windsor, Ontario
Posts: 589
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 2 reviews
i am attempting this in a couple days, hopefully all goes well
scorpion2420 is offline
post #23 of 42 (permalink) Old 01-01-2010, 08:45 PM
btr
AMA Supersport Racer

btr's Avatar

Join Date: Oct 2009
Location: Lynn, MA
Posts: 644
Thanks: 1
Thanked 2 Times in 2 Posts
Feedback Score: 2 reviews
Quote:
Originally Posted by VTSteve View Post
Just wanted to confirm, I verified it is a 17mm.
good to know, another thread said a 19mm worked for them. perhaps the sizes have changed over the years, he was working on an 04 I believe. When I went out to try the 19mm hex nuts it was too large.
btr is offline
post #24 of 42 (permalink) Old 01-13-2010, 04:11 AM
Knee Dragger

DC5 2 CBR's Avatar

Join Date: Sep 2009
Location: chicago
Posts: 140
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 1 reviews
so the 2003 is a 17mm allen head pivot bolt correct?

2003 CBR600rr - Pearl Orange and Black Tribal

CF Jardine RT-1
D.B. smoked screen


DC5 2 CBR is offline
post #25 of 42 (permalink) Old 01-21-2010, 04:13 PM
Knee Dragger

VTSteve's Avatar

Join Date: Dec 2009
Posts: 207
Images: 7
Thanks: 0
Thanked 3 Times in 3 Posts
Feedback Score: 0 reviews
It was a 17mm on my 06. I'll check my 03 service manual later, but I'm pretty sure it'll be the same.
VTSteve is offline
post #26 of 42 (permalink) Old 06-06-2010, 01:29 AM
Knee Dragger

Ultimate_Combination's Avatar

Join Date: Jul 2009
Location: Durham, NC
Posts: 195
Thanks: 0
Thanked 4 Times in 4 Posts
Feedback Score: 2 reviews
the pics died :(
Ultimate_Combination is offline
post #27 of 42 (permalink) Old 06-15-2010, 07:52 PM
Pocketbike Racer

XxxYoOoOxxX's Avatar

Join Date: Oct 2009
Posts: 315
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 1 reviews
I need this pics NOO
XxxYoOoOxxX is offline
post #28 of 42 (permalink) Old 06-21-2010, 11:04 AM Thread Starter
Pocketbike Racer

norm nason's Avatar

Join Date: Aug 2007
Posts: 371
Thanks: 0
Thanked 1 Time in 1 Post
Feedback Score: 1 reviews
sorry fellas. i swing by the site every few months cause i usually have a pm or to with questions and i had cleaned up my photobucket and forgot it would mess up the thread. seeing how poeple like the writeup ill keep her going. ive sold my rr almost 2 years ago and am on a newer r1 now but i owe the site and all the good guys on here. cheers
norm nason is offline
post #29 of 42 (permalink) Old 01-21-2011, 09:23 PM
Training Wheel Hero

Join Date: Feb 2010
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
yeah i know this is an old post sorry to bump it, but for all the other people searching out there, its a 17mm, on the clutch side and a 19mm on the brake side (a least as per my 05)(the swing-arm pivot bolt)
SeaN_ is offline
post #30 of 42 (permalink) Old 04-03-2011, 04:00 AM
Knee Dragger

Prime320's Avatar

Join Date: Oct 2010
Posts: 135
Thanks: 4
Thanked 2 Times in 2 Posts
Feedback Score: 1 reviews
Quote:
Originally Posted by SeaN_ View Post
yeah i know this is an old post sorry to bump it, but for all the other people searching out there, its a 17mm, on the clutch side and a 19mm on the brake side (a least as per my 05)(the swing-arm pivot bolt)

As of my experiance tonight I can verify and back this. 05, 17mm shifter side, 19mm brake side.
Prime320 is offline
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the 600RR.net forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
