Discussion Starter #1

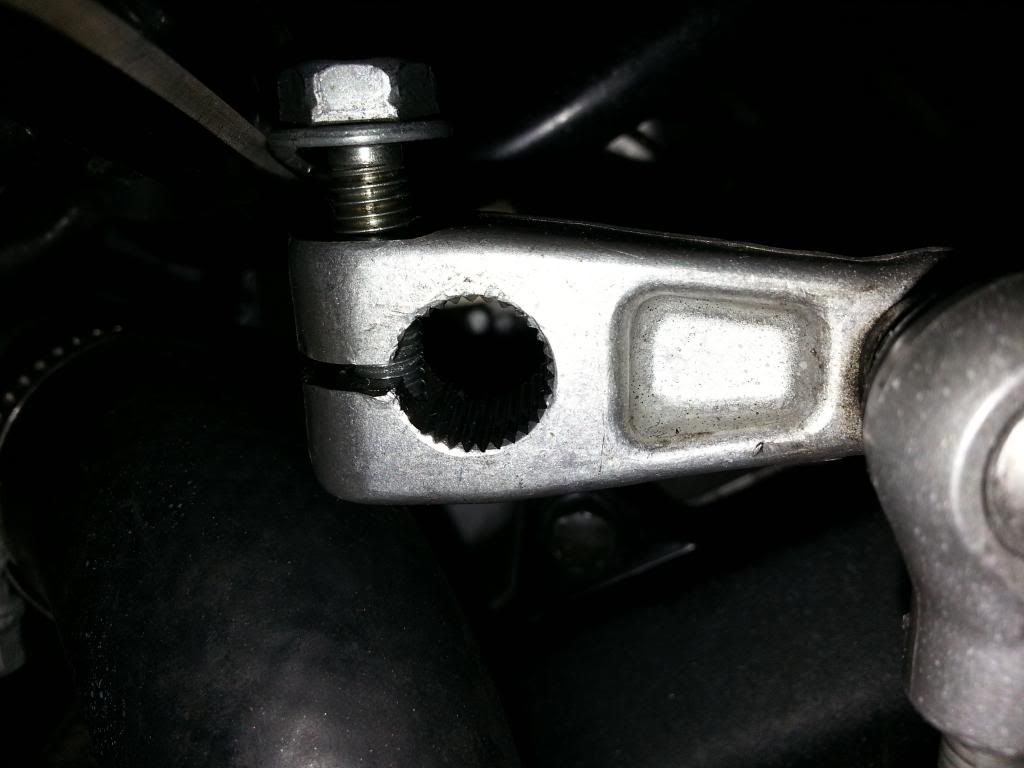

My bike has 24k kmhs on it now and the chain and sprockets are getting a little tired. Tonight I wanted to better inspect the front sprocket and in order to pull the front sprocket cover off I had to remove the shift linkage. I loosened the pinch bolt on the gearshift arm and even after removing the bolt completely the gear shift arm would still not budge so I resorted to a small puller, which did the trick nicely.

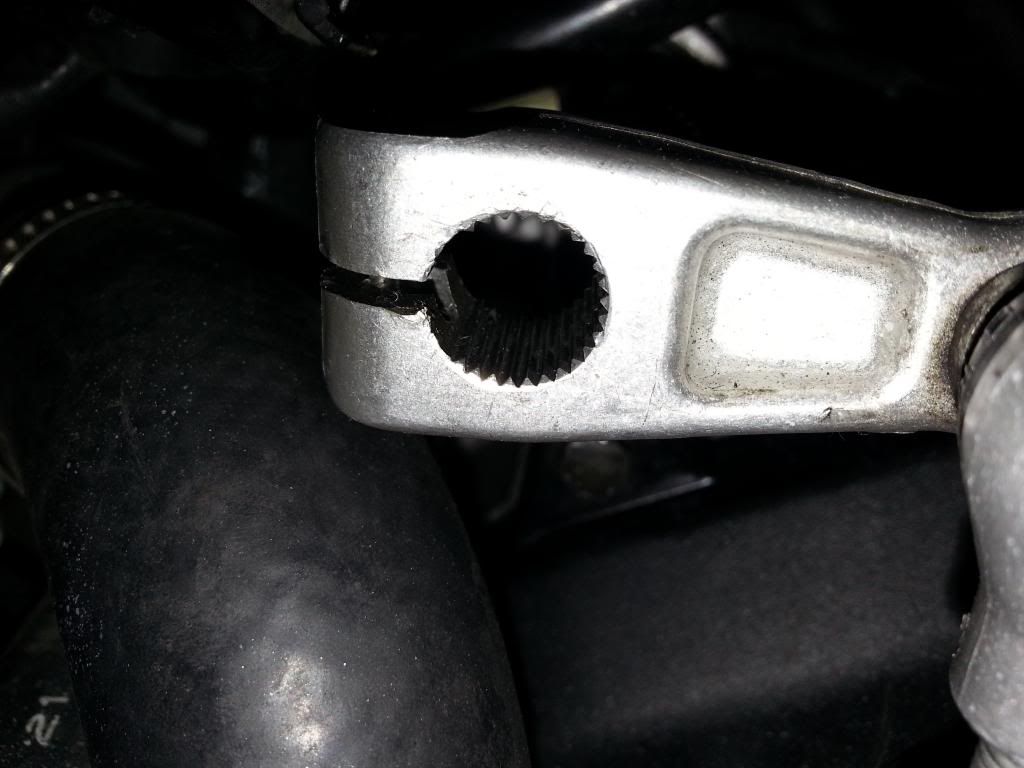

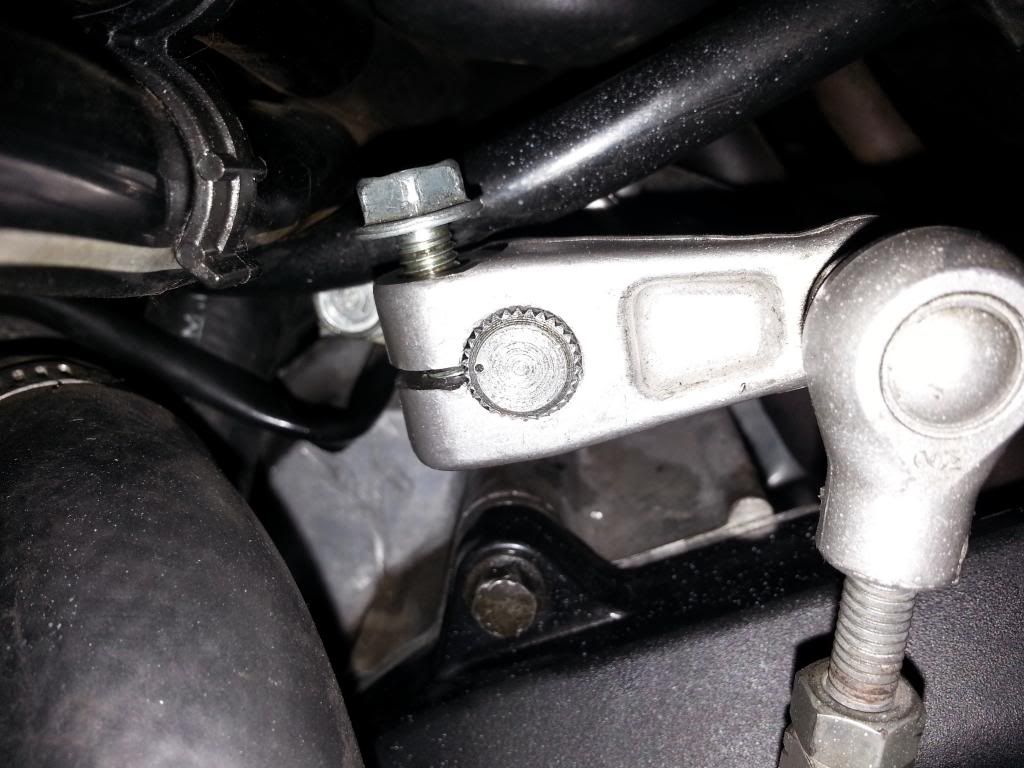

After inspecting the sprocket I started putting it all back together. Since the gearshift arm was stiff coming off it was stiff putting back on so I grabbed a small hammer and started tapping it on. As the gearshift arm (#1, see below) was half on I noticed the gearshift spindle (#3, see below) was now pushed about 1/2 inch further into the motor and the gear shifter was completely limp. I then pulled the gear shift spindle back out 1/2 an inch and the gear shifter felt 'normal' again, I then pushed it back in and it went limp again (just floats up and down, makes no contact with anything).

So now this gear shift spindle freely moves in and out of the motor 1/2 an inch where as it never did before. When its pushed in it spins freely, when its pulled out (normal) it shifts fine.

I did some research on line with shop manuals and put together what I think might be happening below. I suspect the Setting Plate (#2, see below) is either bent or broken, or possibly the bolt that holds it is gone. I have no idea though, just a guess.

Anyone seen this before? What the hell did I do!?


Attachments

·
Registered
Joined
·
8,768 Posts
you now get to take the clutch side engine cover off, behind the clutch basket, there is a small metal tab that is now bent from the shift rod thingy being tapped back

replace said piece and your golden.


·
Registered
Joined
·
8,768 Posts
oh ... durp, yea, you did you reasearch, and found your own problem, now to replace it.

D

·
Guest
Joined
·
0 Posts
That is reason #1 why you do not bang on the shifter rod. The metal plate in there is very fragile and likes to bend.


·
Premium Member
Joined
·
716 Posts
Can I ask a question, did you take the bolt all the way out of the linkage before trying to remove the linkage, or did you just loosen it? If you didn't take the bolt out, that would explain why it is/was so tight.


·
Registered
Joined
·
8,768 Posts
Can I ask a question, did you take the bolt all the way out of the linkage before trying to remove the linkage, or did you just loosen it? If you didn't take the bolt out, that would explain why it is/was so tight.
edzackerly ...

the rod is notched so as long as that bolt doesnt jump out of the linkage, the linkage wont fall off, the bolt must be 100% removed from the linkage.


·
Registered
Joined
·
9 Posts
Discussion Starter #7 (Edited)
Thanks for the replies.

... I loosened the pinch bolt on the gearshift arm and even after removing the bolt completely the gear shift arm would still not budge so I resorted to a small puller, which did the trick nicely...
Yes I removed the bolt completely from the gear shift arm. I am pretty mechanically inclined and thats pretty basic stuff. It was still very tight to slide on so I use a flat hear screw driver between the groove and tapped with a hammer (Before reinstalling) in hopes it would make it slide on easier, still no go.

There was also some locktite on the bolt and that was all over the inner splines of the gear shift arm. I tried removing it but was still stiff to slide on.

The fix doesn't appear to indepth, and I have been meaning to check/replace my clutch plates anyways as the clutch is starting to feel notchy.

Thanks again.


·
BOTM Winner 1/13
Joined
·
5,872 Posts
just wanted to bump this , cause i did the exact same thing as OP did, i will be changing the setting plate out and hopefully this will resolve it.

NOTE: NEVER BANG ON THE SHIFTER ROD WHEN INSTALL YOUR SHIFT ROD LINKAGE, NEVER EVER DO IT


·
BOTM Winner 11/13
Joined
·
2,327 Posts
just wanted to bump this , cause i did the exact same thing as OP did, i will be changing the setting plate out and hopefully this will resolve it.

NOTE: NEVER BANG ON THE SHIFTER ROD WHEN INSTALL YOUR SHIFT ROD LINKAGE, NEVER EVER DO IT
Make sure you do a write up on how to replace it:thumbup: probably going to happen to someone else along the line

Sent from my SCH-I535 using Motorcycle.com Free App


·
BOTM Winner 1/13
Joined
·
5,872 Posts
will do, i take much picture and take notes. seems very self explanatory. i also have my manual with me so that helps a ton .
also spoke with another member who did the same thing and he said it was cause of that PLATE, after replacing it , everything was back to normal. much relief now cause i thought i had to drop the whole engine and get to the shift forks. :(


·
Registered
Joined
·
110 Posts
Same thing happened to me. I replaced the chain and sprockets on my bike very recently. Removing it was easy as I remove the bolt entirely. When I was putting it back together my dumb as forget and had the bolt slightly screwed in. I pushed the rod in by hand and sure enough it went limp.
I pulled it back out and it worked normally. Only now when I start the bike it makes a wierd noise when leaned to the left. Everything else works fine. That noise is bugging the hell outta me so I found this. Now here I am.


·
Registered
Joined
·
913 Posts
I was lucky to not have to pry/tap the shift linkage when I changed my sprockets but as a precaution I put anti-seize compound on the teeth of the shift rod going into the motor so next time it would come off just as easy.


·
Registered
Joined
·
162 Posts
Am I glad I read the dotnet.... This is on my todo list and now I will be careful not to be to rough with the gear shifter rod.


·
Registered
Joined
·
1,008 Posts
Omg i might have done this.... While inspecting the drive sprocket i wanted to shift from 1st to neutral put the linkage on.. Gave it a few taps with a cloth and ratchet.. After something like 5 gentle taps it didnt go nd i felt not that rigid axially ...so i just pulled the linkage down to get gear back to neutral.. And removed it ?... I dont remember the the spindle pushed in.. Maybe 1-2 mm max..am i good?


·
Registered
Joined
·
13 Posts
Did the same thing here but I didn't replace the plate. If I remember correctly a copper pipe fit almost perfect over the rod. So I bought a piece of hard PVC pipe the same size, cut it to size and put a washer on the end so the rod couldn't push in or dig against anything. 12k+ miles later I've had zero problems.
