Discussion Starter #1
ive been away for a bit. Had some life happen I guess.

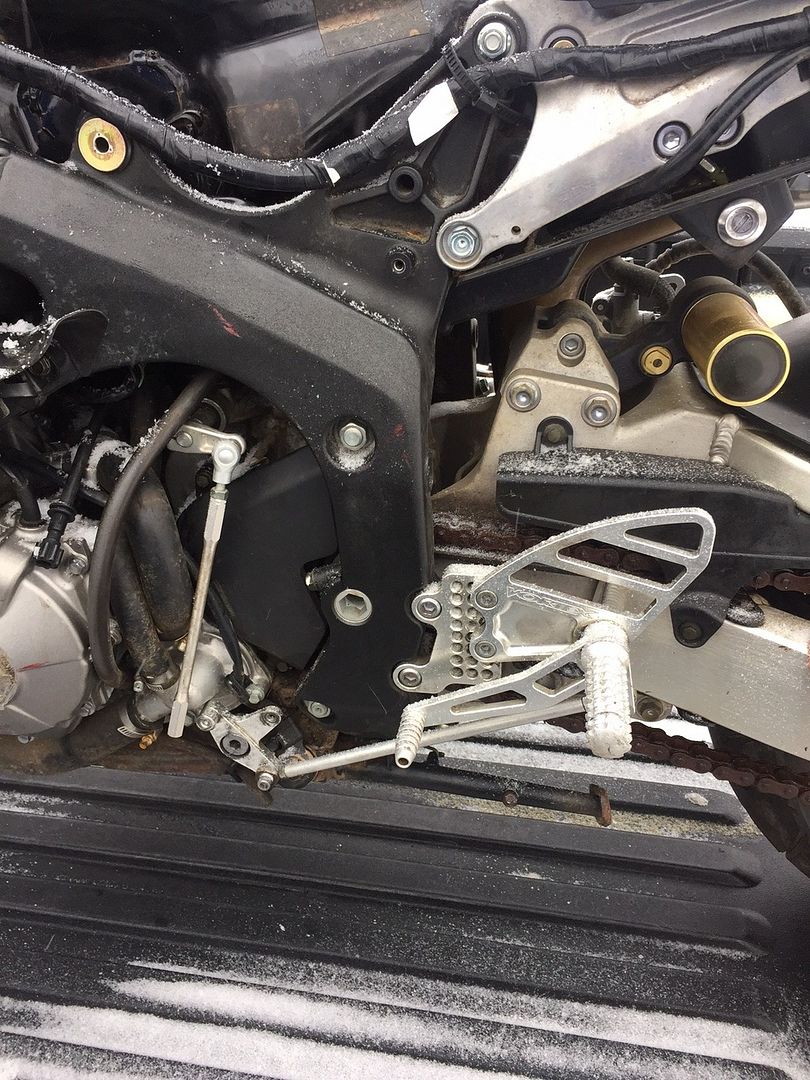

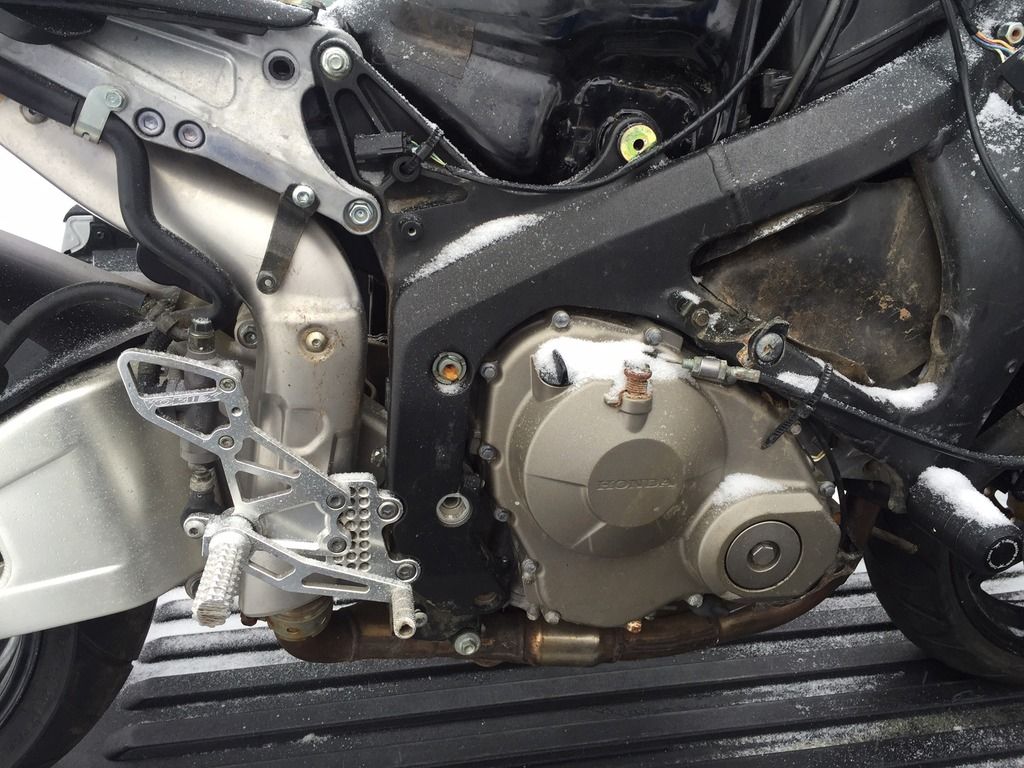

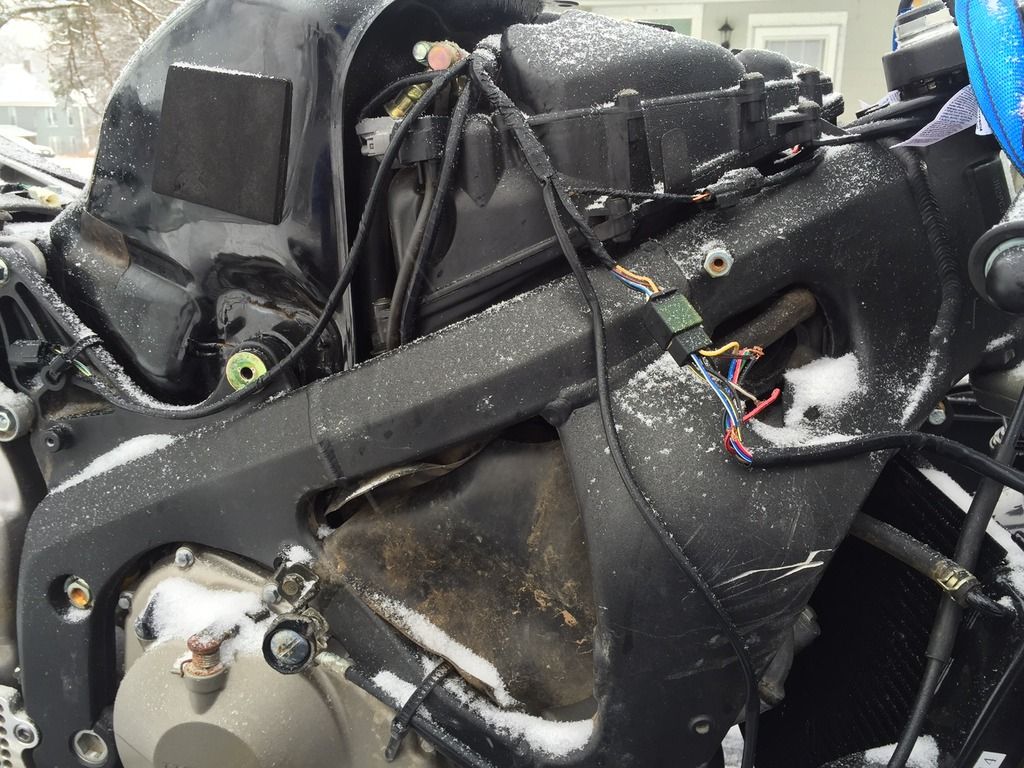

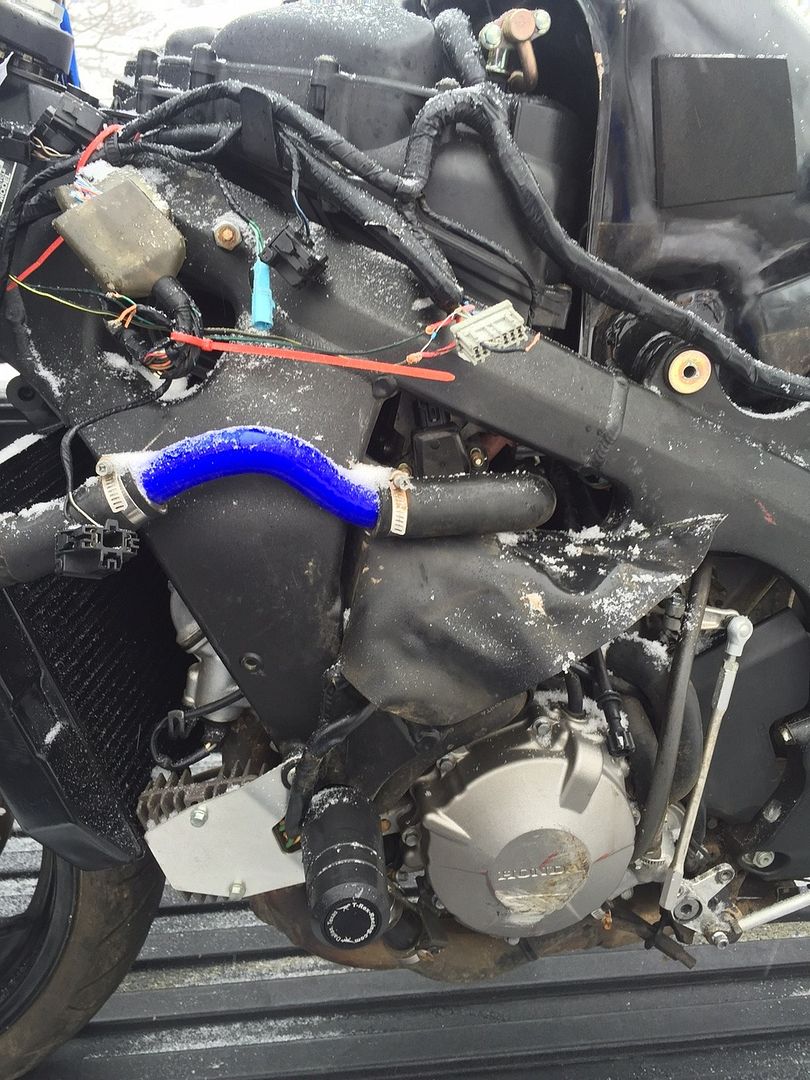

Anyway, I sold the silver '05 and picked up this basket case '03 last night. I got it super cheap. The wire harness has been hacked on so bad, I'm just going to completely replace it. I have an uncut used harness already ordered. It needs a lot more, but I want to hear the engine run before I do anything else. I figured I'd change all the fluids and sort the electrical and go from there. I need to clean the shop today and get it inside, it's freakin winter time here.











·
Registered
Joined
·
874 Posts
Nice! Looking at that chain is making me cringe lol. Wiring harnesses are nightmares... I remember my dad and I picked up an old 70's scrambler and we tried doing the wiring harness on that and it was a nightmare. And that is a carb'd bike.


·
Registered
Joined
·
224 Posts
Nice. not sure what you are going to do with the exhaust, but there are full systems for like 500 bucks (brand new). Micron Carbon Fiber and Titanium available for the 03-04. Yeah Micron is out of business, but a full system for 500? Can't go wrong. Looking forward to seeing this build.


·
Registered
Joined
·
2,635 Posts
Discussion Starter #5
I just got it put away in the shed. It's way too cold to be out there today. Next year this time I hope to have a heated garage built.

I've got a factory service manual and a clymers on the way, as well as the main harness. I need an ignition switch from an 03-04. I really just want the wires from it for a clean keyless setup. If anyone can hook me up, PayPal is ready.

Looking at a new set of pit bull stands too. I want this to be the last time I buy stands.

I'm in the final stages of a complete restoration of a badly neglected 2004 CFR250R, that I really want to finish before I tear into this one. But I'm on vacation all month so I should get a lot done.


·
Registered
Joined
·
2,635 Posts
Discussion Starter #7
My shop is a mess and I started on it yesterday. Also drained the oil in the bike. It looked bad. Like head gasket leak milkshake bad. So that's disappointing. The wiring harness and a new kill switch and a woodcraft key switch eliminator are on the way. I still plan to swap the wiring and start the engine. When I can get it to run, I'll see what's up with mixed fluids in the engine. I may end up looking for a donor motor or part this out before I do too much work.


·
Registered
Joined
·
2,635 Posts
Discussion Starter #10
I don't want to part it. It may still be cheaper to rebuild the engine than part it and start over. But I'm not going to get all fired up about anything until I can start it and see what it does.


·
Registered
Joined
·
2,635 Posts
Discussion Starter #11
I ordered a brand new set of pit bull stands this morning. That's exciting. :woot2:


·
Registered
Joined
·
2,635 Posts
Discussion Starter #13
I've had lesser stands that I always just sold with whatever bike they were for. I decided to go with pitbull and never buy another set.


·
Registered
Joined
·
2,635 Posts
Discussion Starter #14
Waiting on parts and tinkering.















Do I really need the rubber flap that covers the valve cover? It's kind of a pain in the ass.


·
Registered
Joined
·
2,635 Posts
Discussion Starter #16
Good, it's coming out. I'm pretty sure it's for rain water anyway. I just wanted to be sure before I cut into pieces.


·
Registered
Joined
·
224 Posts
Oh it comes out in one solid piece. I believe it is a sort of heat shield as well as keeping water/road grime out. Since you have it apart, are you doing the PAIR valve delete? If you are going to track this bike, you can get a lot of goodies for cheap :) I may have a set of no name brand black shorty levers and a spare K&N filter? The K&N is missing the left ear, but should still function. I will attach a pic in a minute.


·
Registered
Joined
·
2,635 Posts
Discussion Starter #18
I figured pair valves and velocity stacks. I need to study up on that again. It's been a while since I've been this far into an RR.


·
Registered
Joined
·
2,635 Posts
Discussion Starter #19
Oooooh. Wire harness just arrived. Ups tracking says kill switch is supposed to show up today. I may be in the shop for the rest of the day.


·
Registered
Joined
·
2,635 Posts
Discussion Starter #20
Well. I feel like I got a lot done today. I pulled the valve cover to check clearances, and I was pleasantly surprised to find them all still in spec except cylinder 3 exhaust valves were a thousandth tight. Could've been user error, but either way, I'm letting that slide.

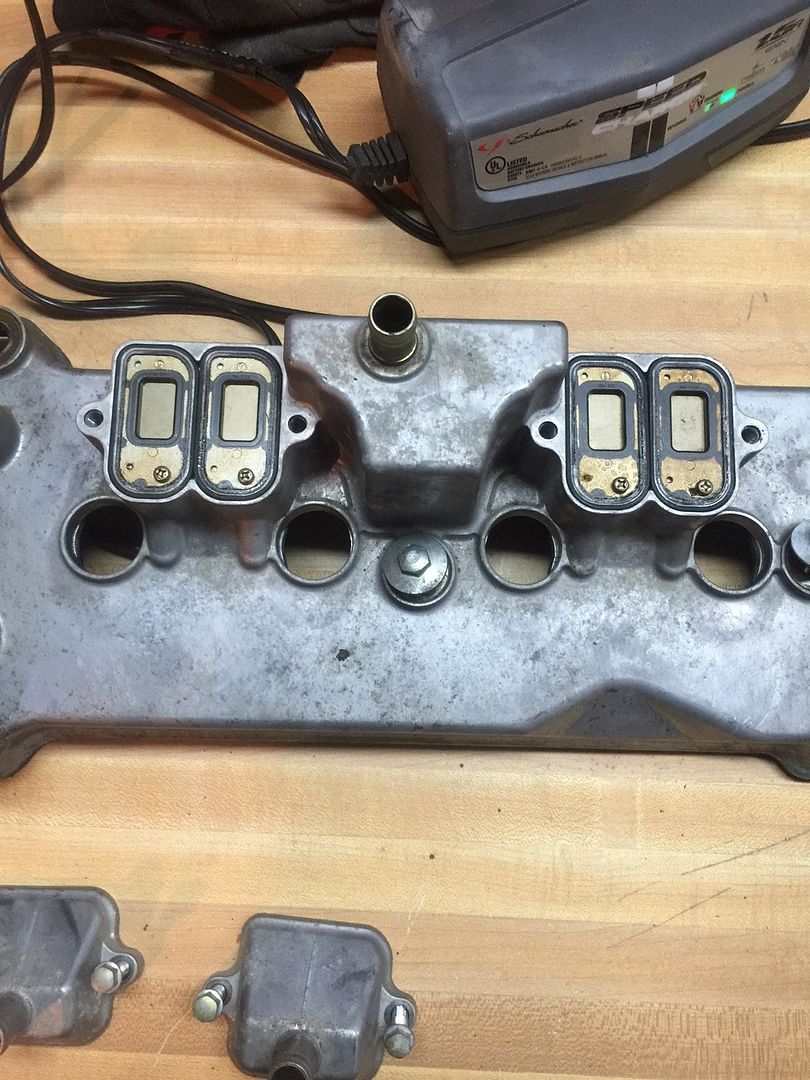

I removed the PAIR valves and ordered a set of block off plates so I'm leaving the air box off until those arrive. The PAIR solenoid and hoses were also removed.

I got the bulk of the new harness on the bike. I ordered a kill switch from an 04 1K RR, which I thought I read in other threads, was a plug and play switch other than two brake switch wires. That was incorrect. The 1000RR switch has a completely different plug. So I removed the pins from the 1000RR plug and swapped the original 600rr plug onto the switch. I'm not happy with the fitment but it makes a good enough connection for testing purposes until I find the right kill switch. Then I installed the woodcraft keyless ignition harness. When the kill switch is turned on, gauges light, needle sweeps, no fuel pump. Press starter button, engine turns over. I'm getting battery voltage at the harness side of the fuel pump connection so the manual says I need a fuel pump.

I'd like to hear from someone with an 03-04 who has the woodcraft keyless ignition harness, before I spend cash on a fuel pump.

That's where I am tonight. Oh yea, stands came today. Good investment IMO. Here's a shitload of pics:
