Alright. In the process of rebuilding this wrecked 08 I need a little help with a few isssues.

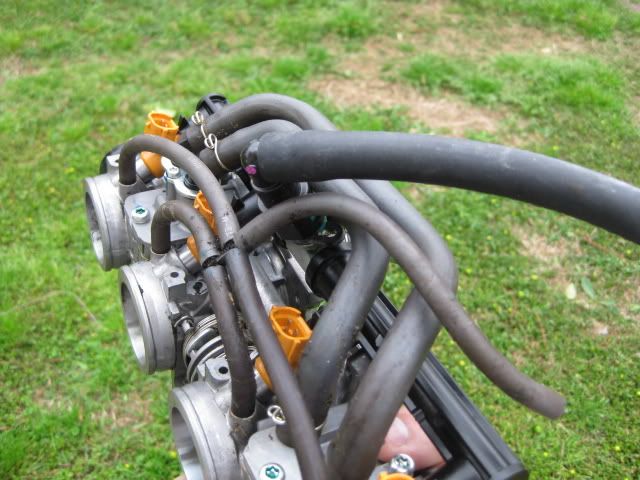

A) Where does this hose go to?

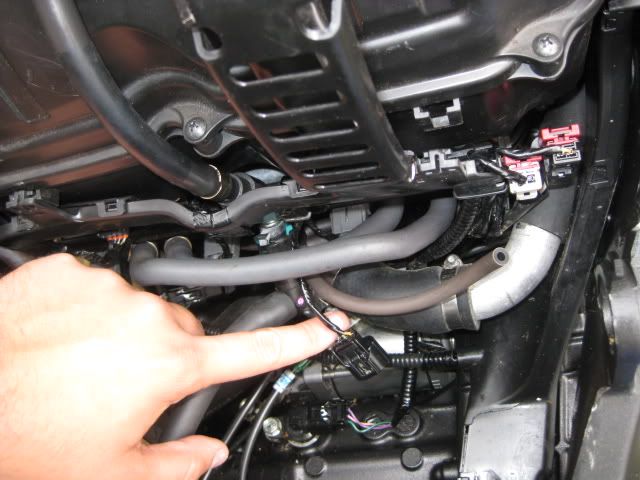

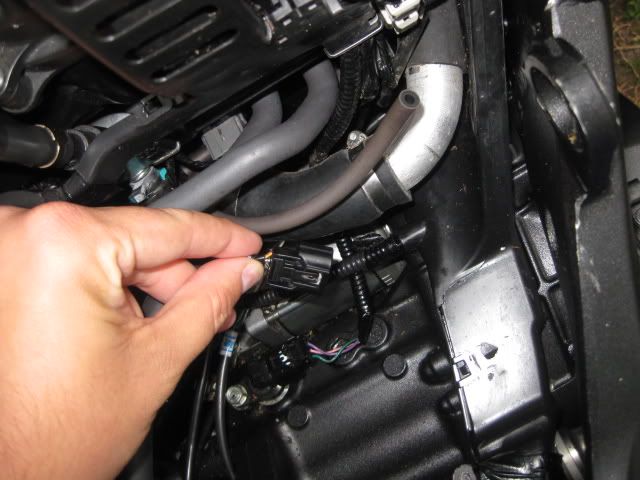

B) Where does this plug into?

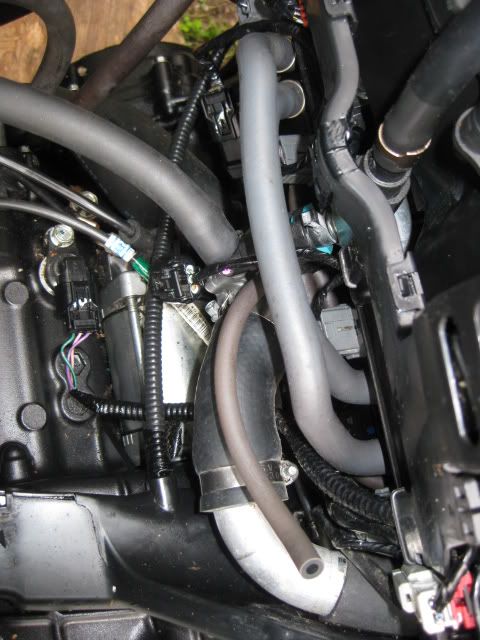

C)Finally, does anyone have a good pic of where the MAP sensor is located?

Thanks.

D

·
Guest
Joined
·
0 Posts
It goes to the MAP sensor, and the sensor should be located at the bottom of the airbox near the location of the hose in the last picture. Chances are, the plug is also to the MAP sensor.


·
Registered
Joined
·
21 Posts
Discussion Starter #3
Woo thanks! My map sensor is probably missing. Will have to order a new one. Thanks a bunch. I will look into this tomorrow
