So I had an FI light come on and it turned out it was for a MAP sensor. I was able to fix it but really have no idea what a MAP sensor does.

Can someone explain what it does and what happens if it isn't working correctly?

thanks, :ciao:

Bob

D

·
Guest
Joined
·
0 Posts
It senses the manifold air pressure and sends it to the ECU to determine the conditions going into the engine. If the MAP sensors is bad, the ECU will think there is a problem and will put the bike in a limp mode, which basically lets the bike run but only enough to get it home or to a shop. Performance is severely retarded when a MAP sensors error is detected, since the ECU wont know if the problem is something that can or cannot damage the engine.


·
Registered
Joined
·
156 Posts
Discussion Starter #3
hmmm,

So first off, thanks Demented for helping me figure out how to get the DTC code so I could then look to fix the problem (different thread).

Regarding the map sensor error - I was still able to ride and have the bike run strong on the track. Seems that the idle is much improved now. It was sounding like a 60's muscle car and now has the familiar 600rr exhaust note.

Regardless, appreciate the explanation.

Bob


·
Registered
Joined
·
227 Posts
It senses the manifold air pressure and sends it to the ECU to determine the conditions going into the engine.
The information the ECU gets from this sensor is one of the main variables used to determine the injector duty cycle. Without knowing the pressure in the manifold the ECU will probably decrease the A/F ratio and retard ignition timing (limp home mode) to protect the engine like Demented said.


·
Registered
Joined
·
225 Posts
manifold absolute pressure**

It senses the manifold air pressure and sends it to the ECU to determine the conditions going into the engine. If the MAP sensors is bad, the ECU will think there is a problem and will put the bike in a limp mode, which basically lets the bike run but only enough to get it home or to a shop. Performance is severely retarded when a MAP sensors error is detected, since the ECU wont know if the problem is something that can or cannot damage the engine.

D

·
Guest
Joined
·
0 Posts
The information the ECU gets from this sensor is one of the main variables used to determine the injector duty cycle. Without knowing the pressure in the manifold the ECU will probably decrease the A/F ratio and retard ignition timing (limp home mode) to protect the engine like Demented said.
Our ECU doesn't adjust injector duration or anything base don the MAP sensor. It's all a pre-determined fuel map that doesn't get adjusted in any way.

manifold absolute pressure**
In case you didn't read closely, I never said what MAP stands for, so no need to correct anything. :ciao:


·
Registered
Joined
·
227 Posts
Our ECU doesn't adjust injector duration or anything base don the MAP sensor. It's all a pre-determined fuel map that doesn't get adjusted in any way.
Unless our ECUs are much different than those used on cars, which I don't think they are, the input from the MAP sensor is used to select the fuel map.

D

·
Guest
Joined
·
0 Posts
Unless our ECUs are much different than those used on cars, which I don't think they are, the input from the MAP sensor is used to select the fuel map.
They are much different. Injector duration, ignition timing, and secondary injector activation is all preset and never changes on the stock map.

D

·
Guest
Joined
·
0 Posts
That's what the MAP is for. The ECU just doesn't adjust the a/f ratio any. There's no O2 sensors other than CA, EDM and JDM models for the ECU to detect if it adjusted the a/f ratio correctly.

The ECU just uses the sensors to detect the conditions going into the engine to determine if any engine damaging conditions are present. The only thing that adjusts the ignition is the knock sensor and the speed sensor.


·
Registered
Joined
·
227 Posts
That's what the MAP is for. The ECU just doesn't adjust the a/f ratio any.
Exactly, you want to maintain the A/F ratio which is why the ECU has to adjust the injector duty cycle based on the amount of air entering the engine, which is what the MAP sensor is for. Our cars do the same thing with a MAP or MAF sensor. It's there for more than just detecting a dangerous engine condition.


·
Registered
Joined
·
237 Posts
A manifold absolute pressure sensor(MAP) is one of the sensors used in an internal combustion engine's electronic control system. Engines that use a MAP sensor are typically fuel injected. The manifold absolute pressure sensor provides instantaneous manifold pressure information to the engine's electronic control unit (ECU). The data is used to calculate air density and determine the engine's air mass flow rate, which in turn determines the required fuel metering for optimum combustion (see stoichiometry). A fuel-injected engine may alternately use a MAF (mass air flow) sensor to detect the intake airflow. A typical configuration employs one or the other, but seldom both.MAP sensor data can be converted to air mass data using the speed-density method. Engine speed (RPM) and air temperature are also necessary to complete the speed-density calculation.


·
Registered
Joined
·
5,702 Posts
A manifold absolute pressure sensor(MAP) is one of the sensors used in an internal combustion engine's electronic control system. Engines that use a MAP sensor are typically fuel injected. The manifold absolute pressure sensor provides instantaneous manifold pressure information to the engine's electronic control unit (ECU). The data is used to calculate air density and determine the engine's air mass flow rate, which in turn determines the required fuel metering for optimum combustion (see stoichiometry). A fuel-injected engine may alternately use a MAF (mass air flow) sensor to detect the intake airflow. A typical configuration employs one or the other, but seldom both.MAP sensor data can be converted to air mass data using the speed-density method. Engine speed (RPM) and air temperature are also necessary to complete the speed-density calculation.
you should cite when you copy and paste something :crackup:

D

·
Guest
Joined
·
0 Posts
Exactly, you want to maintain the A/F ratio which is why the ECU has to adjust the injector duty cycle based on the amount of air entering the engine, which is what the MAP sensor is for. Our cars do the same thing with a MAP or MAF sensor. It's there for more than just detecting a dangerous engine condition.
Exactly what? I'm telling you that the ECU on the CBR600RR does not adjust the a/f ratio in any way, shape or form. The only time it will adjust the a/f ratio is when the engine is cold.

I'm a Honda trained tech with certifications in Honda's engine system for both cars and bikes. :ciao:

The a/f ratio, as far as the ECU knows, stays a constant and is not adjusted. The MAP sensor is just there as a sensor, to make sure nothing bad is happening. If it detects a severe problem, it will put the engine in a limp mode to prevent damage.

That's why it's important to even remap our bikes with a PC3 or other fuel module for something as simple as changing the air filter.


·
Registered
Joined
·
227 Posts
Adjusting the injector duty cycle is required to maintain a constant A/F ratio, and I thought the ECU was advanced enough that it used the information from the MAP sensor in the injector duty cycle calculation. That's all I was saying. If you know for sure that it doesn't, then that really sucks because my 8 year old car has a more advanced ECU than the one in my high performance sport bike!


·
Registered
Joined
·
237 Posts
you should cite when you copy and paste something :crackup:
why is that? I was not taking credit for it, just adding more info for people.:drunk:

D

·
Guest
Joined
·
0 Posts
Adjusting the injector duty cycle is required to maintain a constant A/F ratio, and I thought the ECU was advanced enough that it used the information from the MAP sensor in the injector duty cycle calculation. That's all I was saying. If you know for sure that it doesn't, then that really sucks because my 8 year old car has a more advanced ECU than the one in my high performance sport bike!
I believe you're misreading what I am saying.

As far as the ECU knows, meaning it doesn't know, the a/f ratio is remaining unchanged. There are no O2 sensors on USD model bikes to monitor what the a/f ratio is for the ECU to even know. The ECU is set at one ratio, and that ratio is based off of predetermined measurements, and only uses the MAP and other sensors to know what is going into the engine. It does things a little backwards.

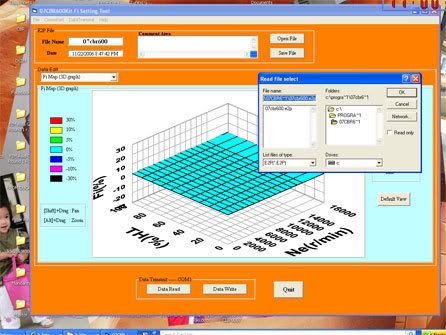

Honda did it for 2 reasons. One being it's cheaper, since it cuts out more programming and other sensors/wires. The other being that the stock ECU can't be hacked like what can be done to Yamaha, Suzuki, or Triumph ECU's to adjust injector duration. That then creates an actual market for the HRC ECU for race teams in racing leagues that do not allow things like the Power Commander or Bazazz units.
